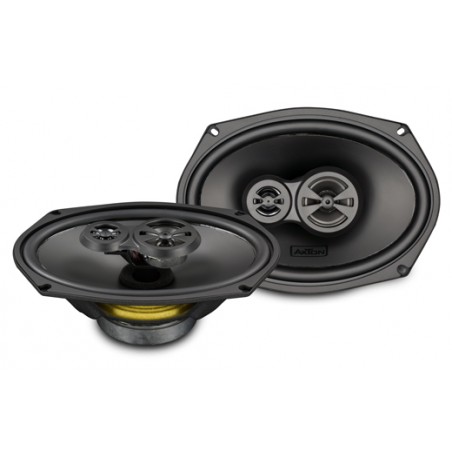

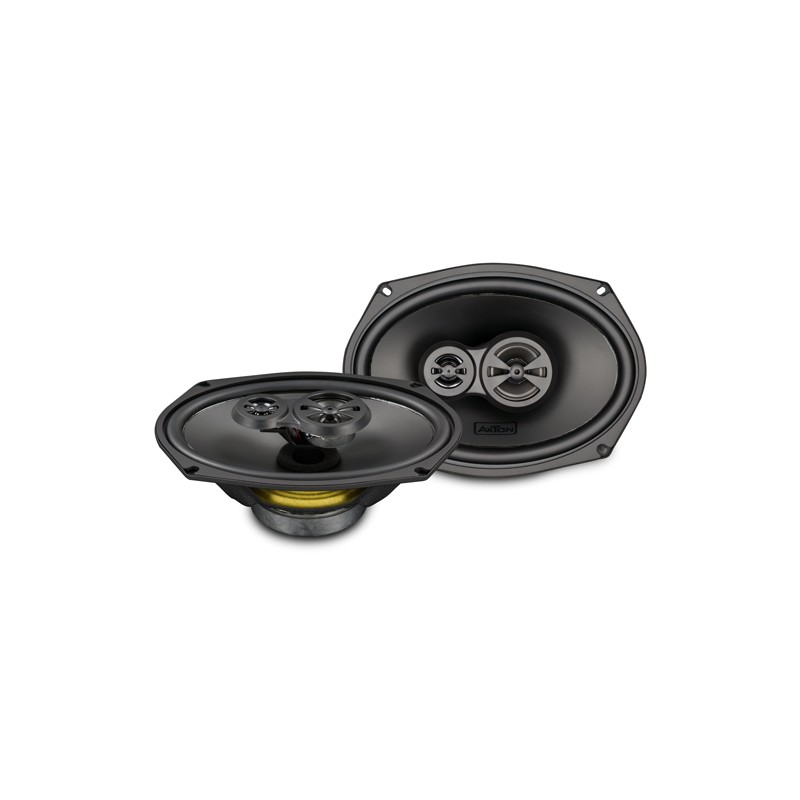

ATX369 - AXTON 6x9" cm 3-Way Coaxial
139,00 CHF
Bruttopreis
| Frequency response | 45 Hz – 22 kHz |
| Nominal impedance | 4 ohms |
| Sensitivity 1 W/1 m | 93 dB |
| Nominal power handling | 100 Wrms |
| Mounting diameter | 15 x 23 mm |
| Mounting depth | 69 mm |
- AXTON‘s new coaxials and triaxial are constructed as point sound sources. The 13 mm dome is at the same level as the woofer cone thereby enabling in-phase radiation of the overlapping frequency sections. Phase shifts in the transition between the frequency components that arise with conventionally protruding tweeters are therefore a thing of the past. The result is transparent, clear music reproduction with a very dynamic response.
- 15 X 23 CM 3-WAY TRIAXIAL SPEAKER SYSTEM
- 13 MM BLACK MYLAR DOME NEO TWEETER
- 51 MM BLACK MYLAR CONE MIDRANGE SPEAKER
- STRONTIUM-FERRITE MAGNET MID/WOOFER
- INJECTION MOULDED POLYPROPYLENE CONE
- NBR NITRILE RUBBER SURROUND
- NOMEX SPIDER
- KAPTON VOICE-COIL FORMER
- 4-LAYER CCA-WIRE VOICE-COIL
- GOLD PLATED FAST-ON CONNECTORS
ATX369
chat
Kommentare (0)
Aktuell keine Kunden-Kommentare
| Frequency response | 45 Hz – 22 kHz |
| Nominal impedance | 4 ohms |
| Sensitivity 1 W/1 m | 93 dB |
| Nominal power handling | 100 Wrms |
| Mounting diameter | 15 x 23 mm |
| Mounting depth | 69 mm |
